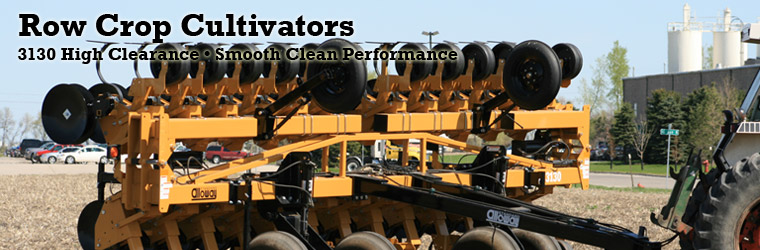

Row Crop Cultivator Model 3130

3130 Overview

Designed with market understanding and field tested know-how, the 3130 is versatile, featuring a higher clearance tool bar and a variety of gang configurations designed for use in corn, cotton, vegetables or sugar beets. It has a close-coupled gang design putting the working tools forward under the tool bar for maximum control. And the single sweep design reduces plugging in high residue conditions.

Back to Top

Features and Benefits

  • Higher Clearance Tool Bar helps prevent weeds from getting caught and plugging machine. [ 1 ]
  • Close-Coupled Gang Design brings sweeps closer to gauge wheel for more even depth control and greatly improved guiding. [ 2 ]
  • Single Sweep Design reduces plugging in high residue. [ 3 ]
  • Mechanical Guidance System increases precision and cuts cultivation time. [ 3 ]
  • Double H Linkage provides short wide extra strong coupling between gang and tool bar ensuring greater gang integrity, strength and control. [ 4 ]
  • Screw Adjustments allow changing time pitch and working depth easier. [ 5 ]
  • Folding Tool Bar on 8R30 and up for easy transportation. [ 6 ]
Back to Top

Optional Equipment

  • Adjustable Guide and Support Wheels
  • Semi Pneumatic Yoke Mount Guide Wheel
  • Steel Yoke Guide wheels
  • King Guide Struts
  • Rolling Shields
  • Open Top Shield
  • Dual Disc Combinations
  • Row Weeder Disc Attachments
  • Cutting Coulter
  • Down Pressure Spring Kit
  • Rear Extensions
  • Shank and Tine Assemblies
  • Stabilizer Coulter
  • Pull-Type Hitch
  • Lift Assist
  • Sweep Adapter
Back to Top

Photos

  • High Clearance [ 1 ] High Clearance
  • Close-Coupled Gang Design [ 2 ] Close-Coupled Gang
  • Single Sweep & Guidance System [ 3 ] Single Sweep & Guidance
  • Double H Linkage [ 4 ] Double H Linkage
  • Screw Adjustments [ 5 ] Screw Adjustments
  • Folding Tool Bar [ 6 ] Folding Tool Bar
Back to Top

Specifications

Row Spacing 22-40"
Sizes 6-24 Row
Dual Disc Weeder Diameter 14"
Shanks Spring Tine
Tool Bar Rigid, Folding and Folding Reinforced
Number of Tines 1
Linkage Double H
Linkage Bushings ¾" Oilite
Linkage Gauge Wheel Rim 11 ga.
Combination Support/Guide Wheels Steel Coned, Pneumatic, Semi-Pneumatic
Lift Assist Single or Double
Standard Tool Bar 7" x 7" x ¼"
Tool Bar Support Wheel Pneumatic, Adjustable
Gauge Wheels 6" x 16"
Hitch 3 point, Category 2 or 3
Gauge Wheel Rubber Carry Capacity 800 lbs
