Shredder

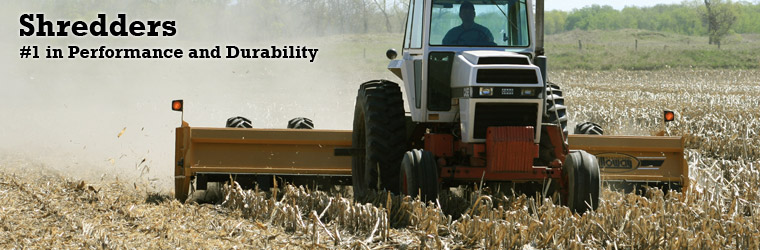

Shredder Overview

From the originator of the Tri-Lateral Hood design and spiral mounted flail tubes, the Alloway Shredder has always been #1 in performance and durability. Alloway is back in the business of manufacturing a top quality shredder line with a new heavier body, larger aluminum gearbox, 10” flail tubes, larger tires and 1000/1500 rpm rotor speed, we can keep up to the extra tough crops grown today.

Back to Top

Features and Benefits

  • Heavy Duty Tri-Lateral Steel Body is ¼" thick for extra strength, extended wear and quadruple shredding action.
  • Rear Struts with screw jacks (optional hydraulic) allow for easy leveling and height adjustment.  [ 1 ]
  • Centrally Mounted Gear Box eliminates extra belts, bearings, u-joints etc.
  • Rugged Large Tires for longer wear and bearing life.  [ 1 ]
  • Floating 3-Point Hitch provides smoother action, reduces hitch stress and pressure.  [ 2 ]
  • Skid Plate helps prevent machine from bottoming out and keeps rotor and knifes out of the dirt.  [ 3 ]
  • Large 10" Seamless Steel Flail Tube is dynamically balanced for smooth operation and have replaceable end shafts.
  • 2 3/16" Diameter Flail Tube Shafts and Bearings are double sealed for improved load capacity and bearing life.  [ 3 ]
  • Spiral Mounted Flails were originally designed by Alloway for reduced pulsing and smoother operation.  [ 4 ]
  • Heavy Duty Gear Box with extended housing for extra bearing support and larger oil capacity for cooler operation
  • Safety Light Kit is standard on all units and customized to each machine for added safety.
  • Structural Steel Tube Cross Bracing for added support and stiffness of frame.
Back to Top

Optional Equipment

  • Hydraulic Rear Struts enable height adjustments to be made from the tractor operator's seat.
  • End Transport Kit with clevis or 2 pt mounts for easy transport to and from the field.
  • Caster Wheel Struts make end turns and difficult field conditions easy. Available with ratchet jack or hydraulic.
  • Center Dividers pushes material over from center.
  • Bed Cones for packing potato beds.
Back to Top

Photos

  • [ 1 ] Rear Struts/Rugged Tires
  • [ 2 ] Floating 3-Point Hitch
  • [ 3 ] Skid Plate/Flail Tube Ends
  • [ 4 ] Spiral Mounted Flails
Back to Top

Specifications

Tires (4) 12.5L X 16" or 12.4 x 24" traction
Hitch 2-point, 3-point or pull type
Rotor Speed 1500 rpm L-Knife - 1000 Cup Knife
Hood Type Tri-Lateral
Blade Tip Speed 12,952 fpm (147 mph)
Gearbox 250 hp
Tractor CV PTO 1000 1-3/4 or 1-3/8
Min. Tractor Horsepower 6 hp/ft cutting width
Body Thickness ¼" throughout
End Plate Thickness ¼"
Flail Tube Diameter 10" DOM Tubing
Rotor Shaft Size 2 3/16"
Flail Tube End Bearing 2 3/16"
Knife Pattern Spiral
Knife Retention Bolt-On Cup, D-Ring L-Knife
Hitches Category II or III 3-point or pull type
Back to Top

Available Models

12 foot
15 foot
18 foot
20 foot
22 foot
25 foot
27 foot
30 foot
